35. Univariate Time Series with Matrix Algebra#

35.1. Overview#

This lecture uses matrices to solve some linear difference equations.

As a running example, we’ll study a second-order linear difference equation that was the key technical tool in Paul Samuelson’s 1939 article [Samuelson, 1939] that introduced the multiplier-accelerator model.

This model became the workhorse that powered early econometric versions of Keynesian macroeconomic models in the United States.

You can read about the details of that model in Samuelson Multiplier-Accelerator.

(That lecture also describes some technicalities about second-order linear difference equations.)

In this lecture, we’ll also learn about an autoregressive representation and a moving average representation of a non-stationary univariate time series \(\{y_t\}_{t=0}^T\).

We’ll also study a “perfect foresight” model of stock prices that involves solving a “forward-looking” linear difference equation.

We will use the following imports:

import numpy as np
import matplotlib.pyplot as plt
from matplotlib import cm
plt.rcParams["figure.figsize"] = (11, 5)  #set default figure size

35.2. Samuelson’s model#

Let \(t = 0, \pm 1, \pm 2, \ldots\) index time.

For \(t = 1, 2, 3, \ldots, T\) suppose that

(35.1)#\[y_{t} = \alpha_{0} + \alpha_{1} y_{t-1} + \alpha_{2} y_{t-2}\]

where we assume that \(y_0\) and \(y_{-1}\) are given numbers that we take as initial conditions.

In Samuelson’s model, \(y_t\) stood for national income or perhaps a different measure of aggregate activity called gross domestic product (GDP) at time \(t\).

Equation (35.1) is called a second-order linear difference equation. It is called second order because it depends on two lags.

But actually, it is a collection of \(T\) simultaneous linear equations in the \(T\) variables \(y_1, y_2, \ldots, y_T\).

Note

To be able to solve a second-order linear difference equation, we require two boundary conditions that can take the form either of two initial conditions, two terminal conditions or possibly one of each.

Let’s write our equations as a stacked system

\[\begin{split} \underset{\equiv A}{\underbrace{\left[\begin{array}{cccccccc} 1 & 0 & 0 & 0 & \cdots & 0 & 0 & 0\\ -\alpha_{1} & 1 & 0 & 0 & \cdots & 0 & 0 & 0\\ -\alpha_{2} & -\alpha_{1} & 1 & 0 & \cdots & 0 & 0 & 0\\ 0 & -\alpha_{2} & -\alpha_{1} & 1 & \cdots & 0 & 0 & 0\\ \vdots & \vdots & \vdots & \vdots & \cdots & \vdots & \vdots & \vdots\\ 0 & 0 & 0 & 0 & \cdots & -\alpha_{2} & -\alpha_{1} & 1 \end{array}\right]}}\left[\begin{array}{c} y_{1}\\ y_{2}\\ y_{3}\\ y_{4}\\ \vdots\\ y_{T} \end{array}\right]=\underset{\equiv b}{\underbrace{\left[\begin{array}{c} \alpha_{0}+\alpha_{1}y_{0}+\alpha_{2}y_{-1}\\ \alpha_{0}+\alpha_{2}y_{0}\\ \alpha_{0}\\ \alpha_{0}\\ \vdots\\ \alpha_{0} \end{array}\right]}} \end{split}\]

or

\[ A y = b \]

where

\[ y = \begin{bmatrix} y_1 \cr y_2 \cr \vdots \cr y_T \end{bmatrix} \]

Evidently \(y\) can be computed from

\[ y = A^{-1} b \]

The vector \(y\) is a complete time path \(\{y_t\}_{t=1}^T\).

Let’s put Python to work on an example that captures the flavor of Samuelson’s multiplier-accelerator model.

We’ll set parameters equal to the same values we used in Samuelson Multiplier-Accelerator.

T = 80

# parameters
α_0 = 10.0
α_1 = 1.53
α_2 = -.9

y_neg1 = 28. # y_{-1}
y_0 = 24.

Now we construct \(A\) and \(b\).

A = np.identity(T)  # The T x T identity matrix

for i in range(T):

    if i-1 >= 0:
        A[i, i-1] = -α_1

    if i-2 >= 0:
        A[i, i-2] = -α_2

b = np.full(T, α_0)
b[0] = α_0 + α_1 * y_0 + α_2 * y_neg1
b[1] = α_0 + α_2 * y_0

Let’s look at the matrix \(A\) and the vector \(b\) for our example.

A, b
(array([[ 1.  ,  0.  ,  0.  , ...,  0.  ,  0.  ,  0.  ],
        [-1.53,  1.  ,  0.  , ...,  0.  ,  0.  ,  0.  ],
        [ 0.9 , -1.53,  1.  , ...,  0.  ,  0.  ,  0.  ],
        ...,
        [ 0.  ,  0.  ,  0.  , ...,  1.  ,  0.  ,  0.  ],
        [ 0.  ,  0.  ,  0.  , ..., -1.53,  1.  ,  0.  ],
        [ 0.  ,  0.  ,  0.  , ...,  0.9 , -1.53,  1.  ]]),
 array([ 21.52, -11.6 ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,
         10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ,  10.  ]))

Now let’s solve for the path of \(y\).

If \(y_t\) is GNP at time \(t\), then we have a version of Samuelson’s model of the dynamics for GNP.

To solve \(y = A^{-1} b\) we can either invert \(A\) directly, as in

A_inv = np.linalg.inv(A)

y = A_inv @ b

or we can use np.linalg.solve:

y_second_method = np.linalg.solve(A, b)

Here make sure the two methods give the same result, at least up to floating point precision:

np.allclose(y, y_second_method)
True

Note

In general, np.linalg.solve is more numerically stable than using np.linalg.inv directly. However, stability is not an issue for this small example. Moreover, we will repeatedly use A_inv in what follows, so there is added value in computing it directly.

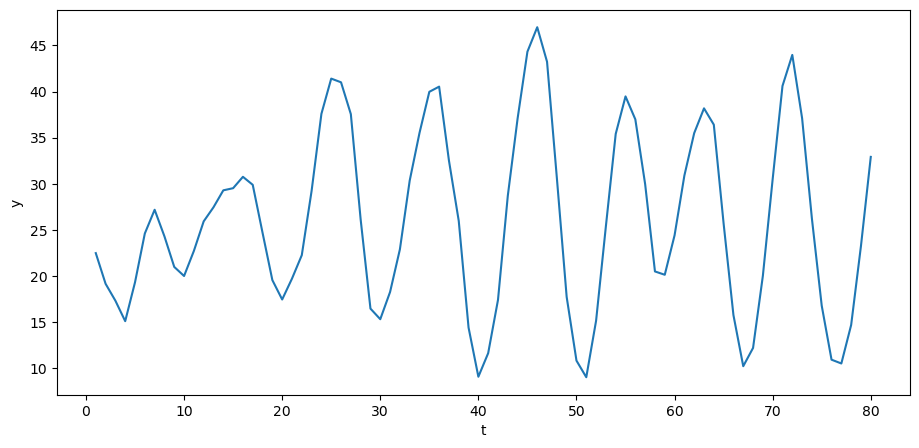

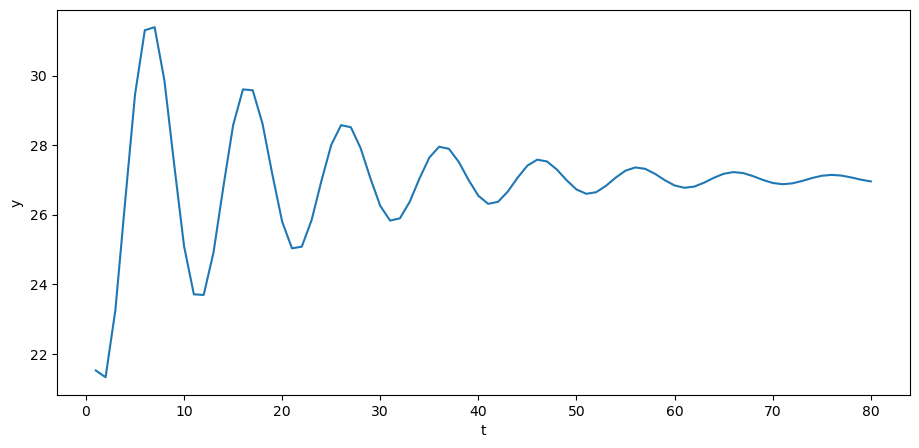

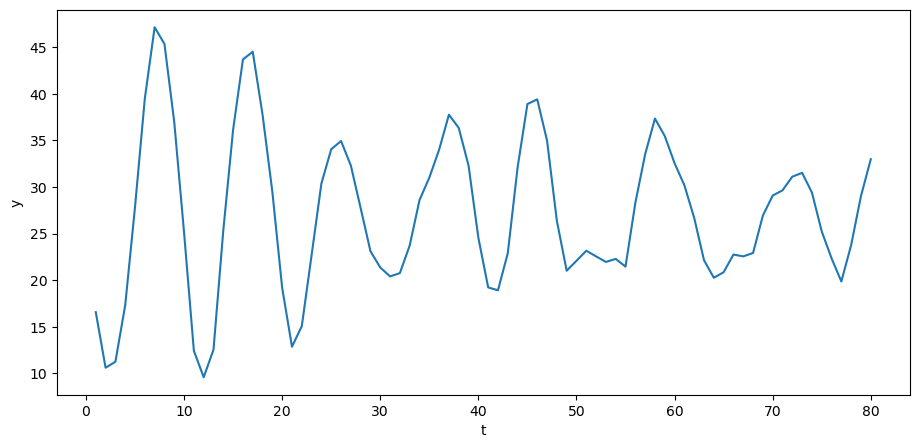

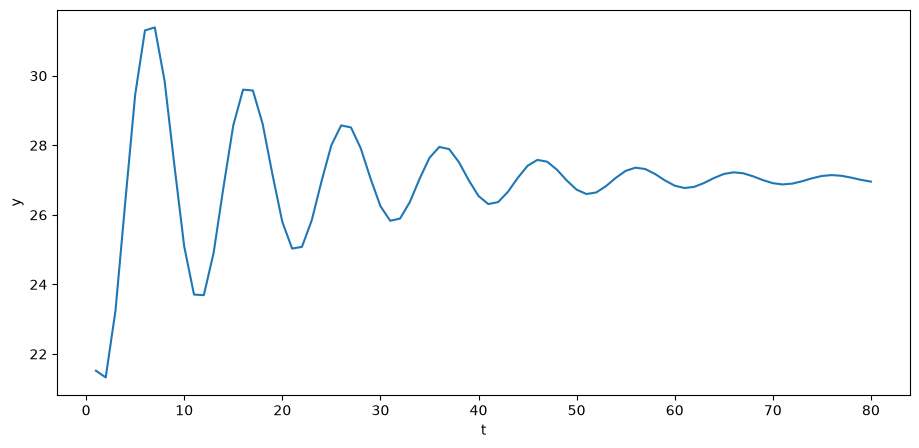

Now we can plot.

plt.plot(np.arange(T)+1, y)
plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/356febb2c6d6b3118c3e355d03be0607abee8216ff1c929d80de96e359c5bfa9.png

The *steady state* value \(y^*\) of \(y_t\) is obtained by setting \(y_t = y_{t-1} = y_{t-2} = y^*\) in (35.1), which yields

\[ y^* = \frac{\alpha_{0}}{1 - \alpha_{1} - \alpha_{2}} \]

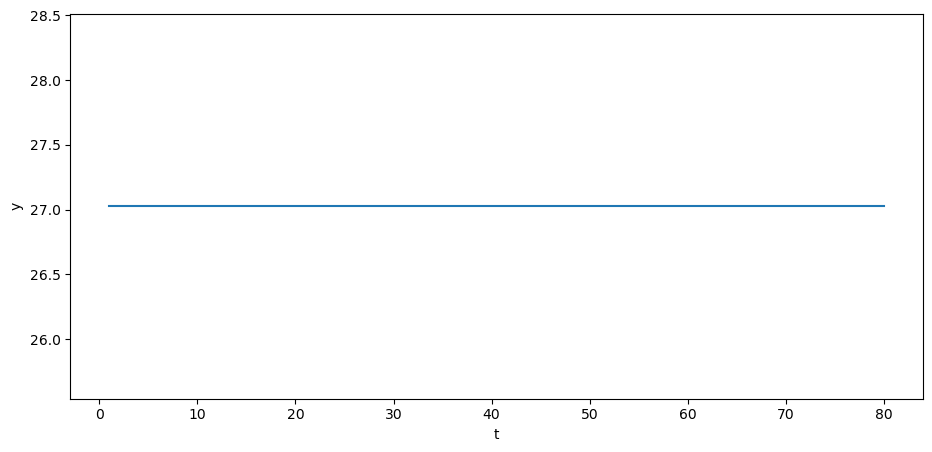

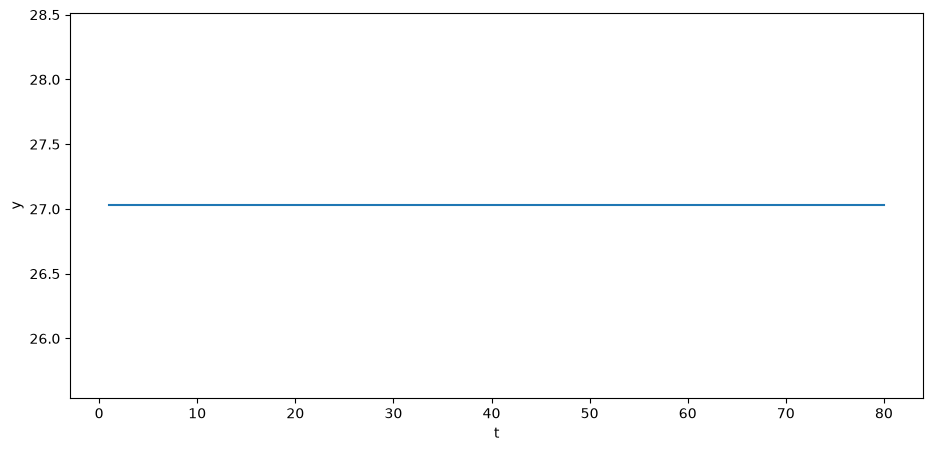

If we set the initial values to \(y_{0} = y_{-1} = y^*\), then \(y_{t}\) will be constant:

y_star = α_0 / (1 - α_1 - α_2)
y_neg1_steady = y_star # y_{-1}
y_0_steady = y_star

b_steady = np.full(T, α_0)
b_steady[0] = α_0 + α_1 * y_0_steady + α_2 * y_neg1_steady
b_steady[1] = α_0 + α_2 * y_0_steady
y_steady = A_inv @ b_steady
plt.plot(np.arange(T)+1, y_steady)
plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/2c45bfed57829e2ed1c4976b8d1cc2a357708c99808d935e1fa8690159721c20.png

35.3. Adding a random term#

To generate some excitement, we’ll follow in the spirit of the great economists Eugen Slutsky and Ragnar Frisch and replace our original second-order difference equation with the following second-order stochastic linear difference equation:

(35.2)#\[y_{t} = \alpha_{0} + \alpha_{1} y_{t-1} + \alpha_{2} y_{t-2} + u_t\]

where \(u_{t} \sim N\left(0, \sigma_{u}^{2}\right)\) and is IID, meaning independent and identically distributed.

We’ll stack these \(T\) equations into a system cast in terms of matrix algebra.

Let’s define the random vector

\[\begin{split} u=\left[\begin{array}{c} u_{1}\\ u_{2}\\ \vdots\\ u_{T} \end{array}\right] \end{split}\]

Where \(A, b, y\) are defined as above, now assume that \(y\) is governed by the system

(35.3)#\[ A y = b + u \]

The solution for \(y\) becomes

(35.4)#\[ y = A^{-1} \left(b + u\right) \]

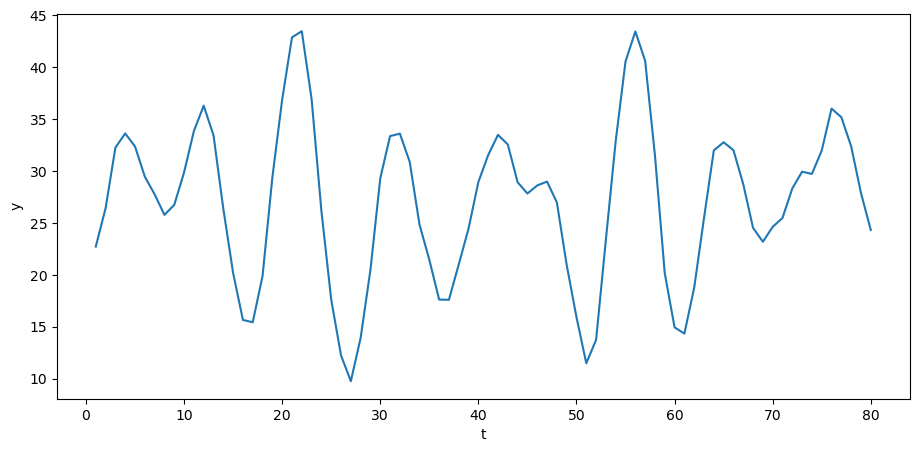

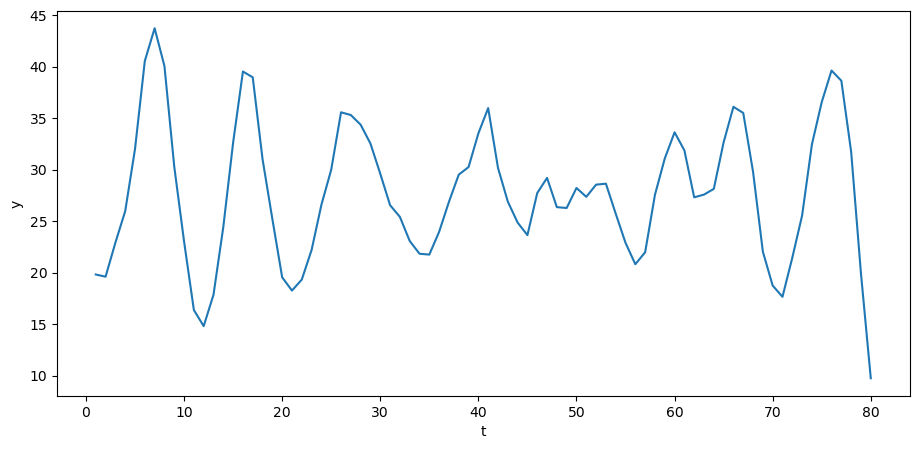

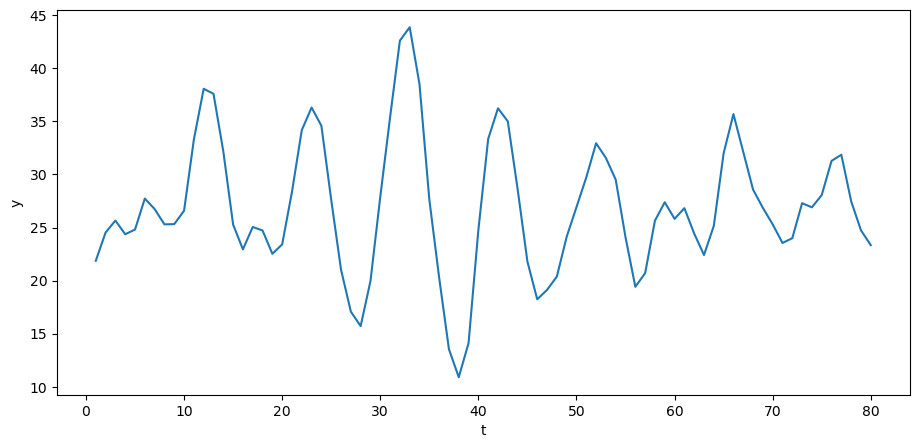

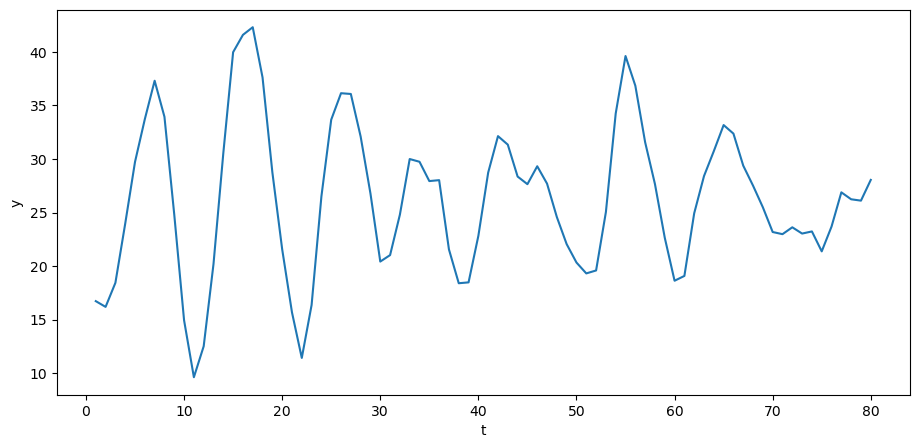

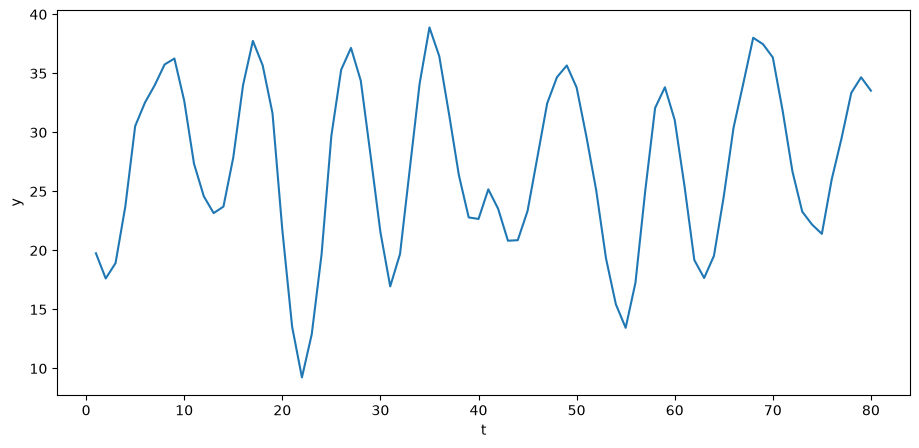

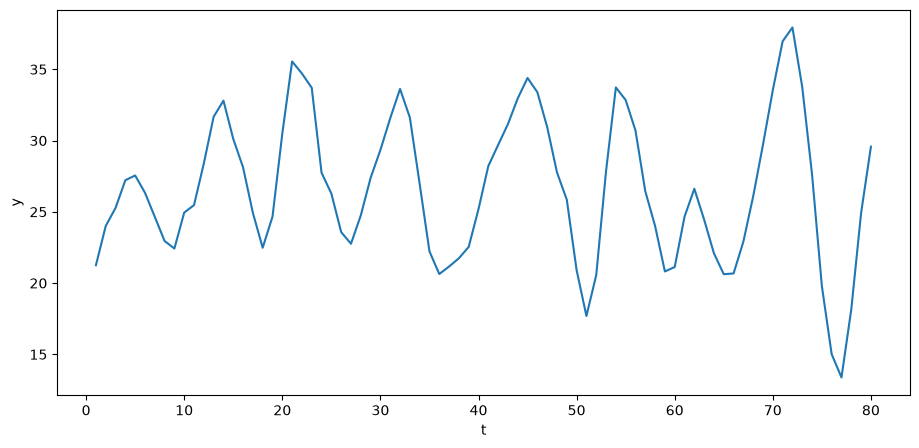

Let’s try it out in Python.

σ_u = 2.
u = np.random.normal(0, σ_u, size=T)
y = A_inv @ (b + u)
plt.plot(np.arange(T)+1, y)
plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/ed6b9658e6f371a048d87e61fb96af25cb4cdc3dcd411cb327dee7b7e41dbc87.png

The above time series looks a lot like (detrended) GDP series for a number of advanced countries in recent decades.

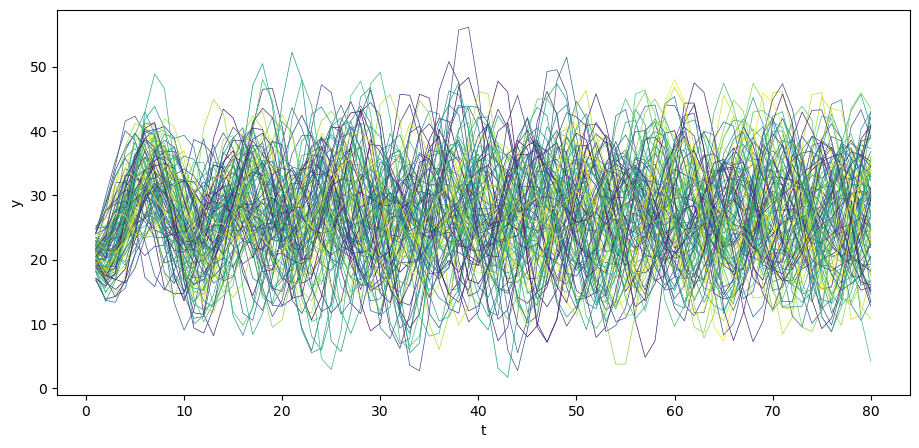

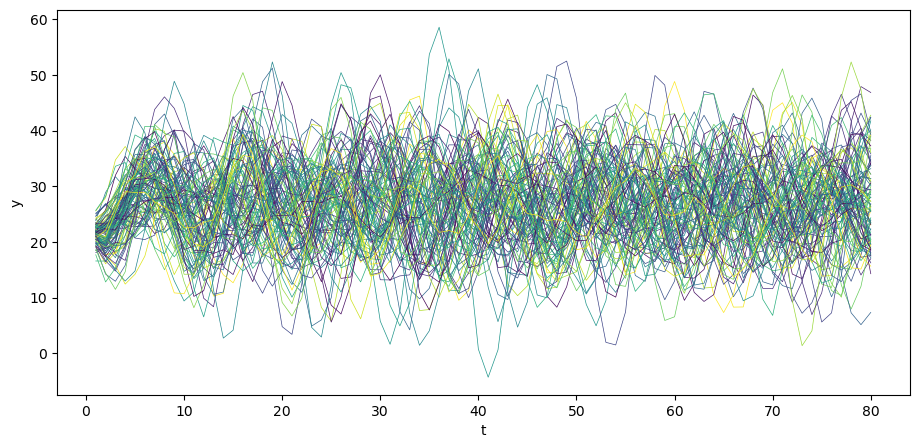

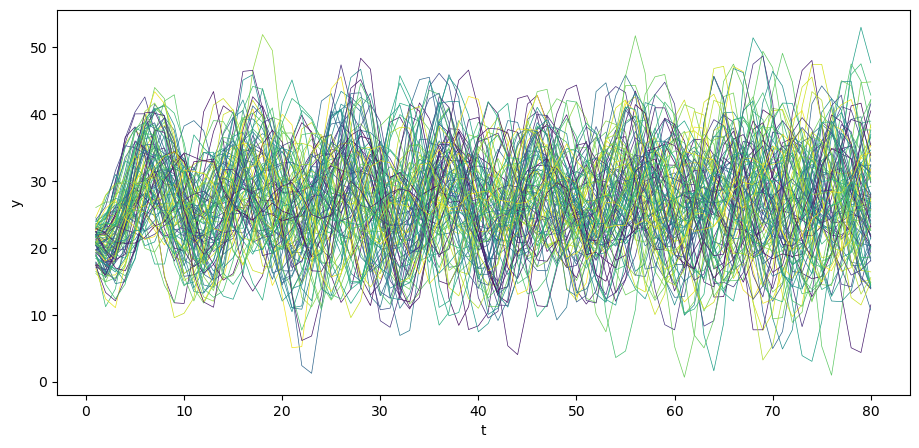

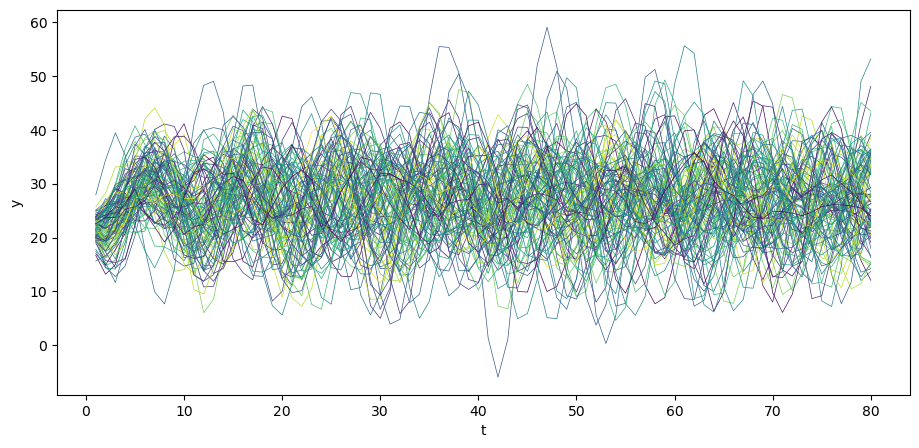

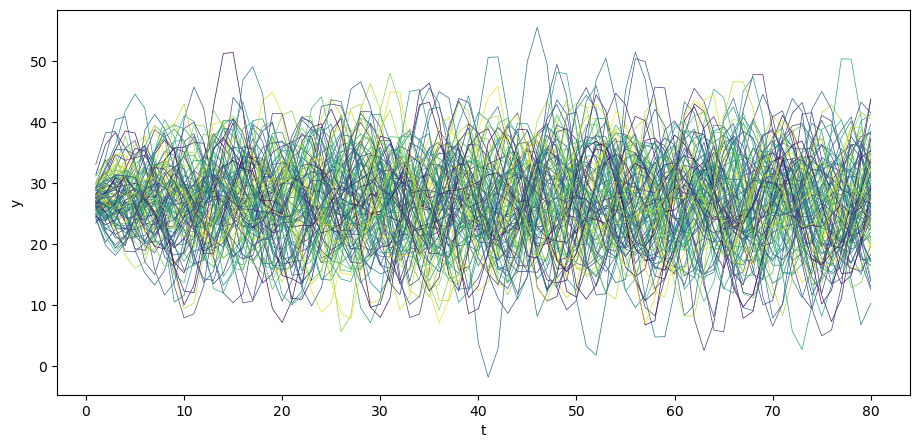

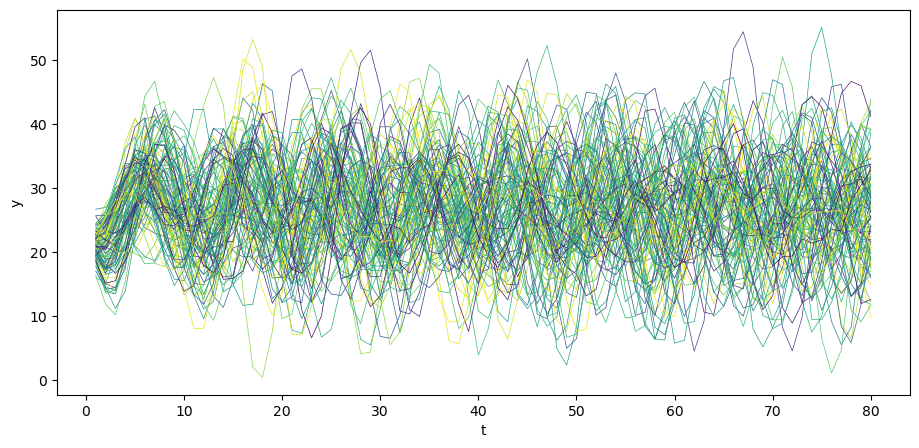

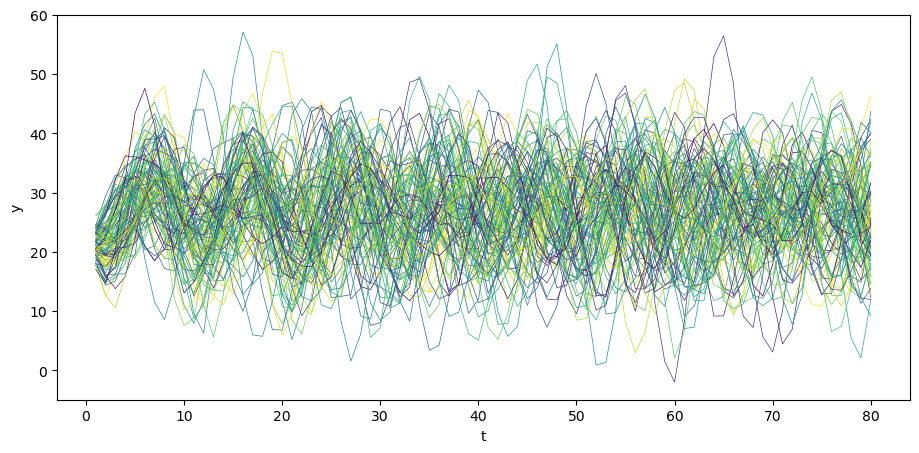

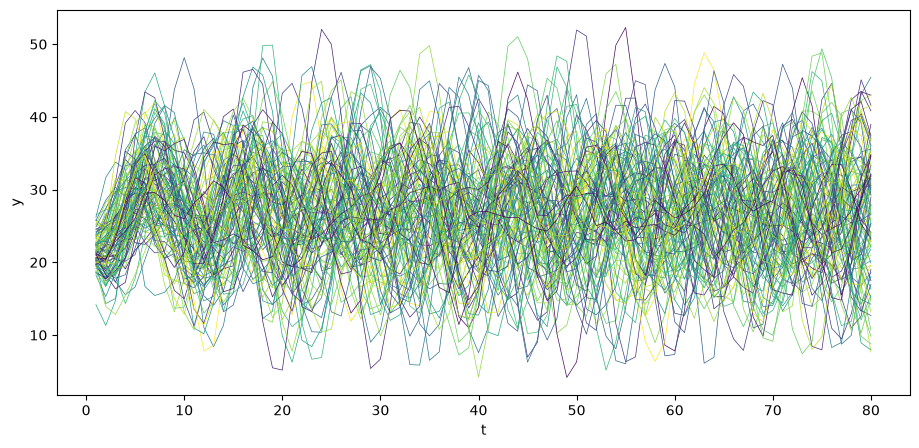

We can simulate \(N\) paths.

N = 100

for i in range(N):
    col = cm.viridis(np.random.rand())  # Choose a random color from viridis
    u = np.random.normal(0, σ_u, size=T)
    y = A_inv @ (b + u)
    plt.plot(np.arange(T)+1, y, lw=0.5, color=col)

plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/303735758f0fe547b164915d43f52ef61dea6553a0e330465ff5c3691742303a.png

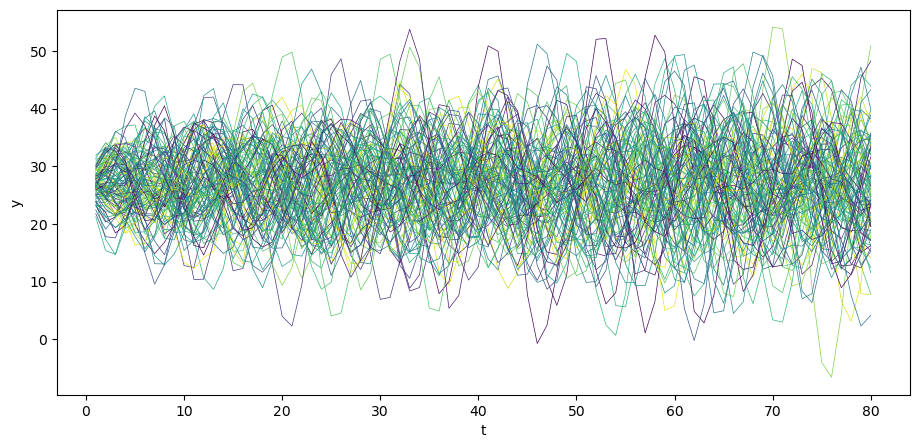

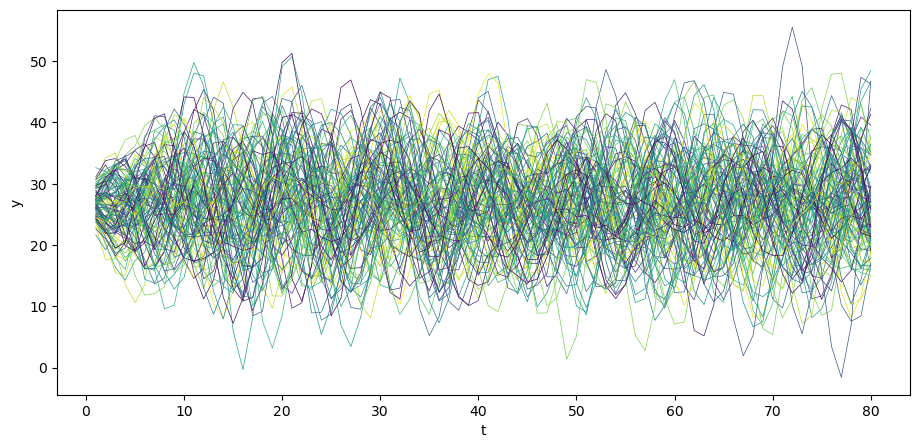

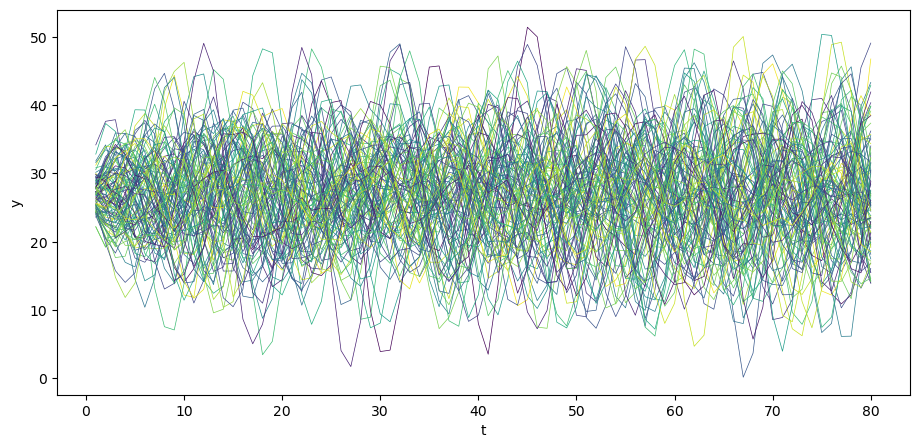

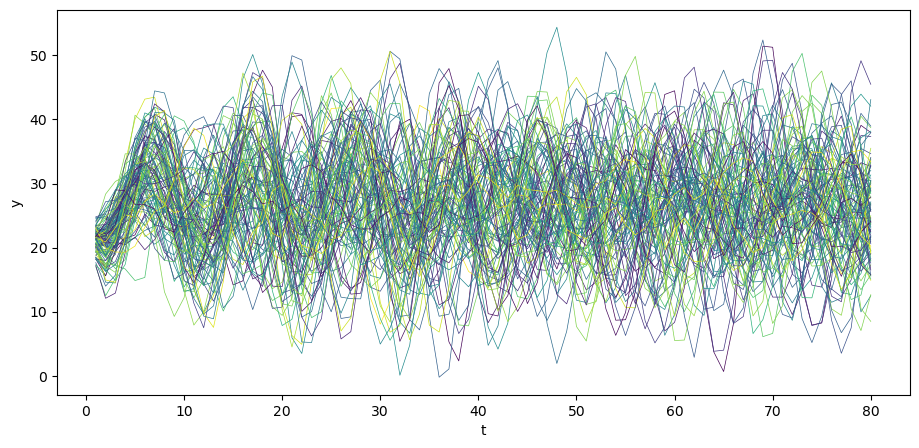

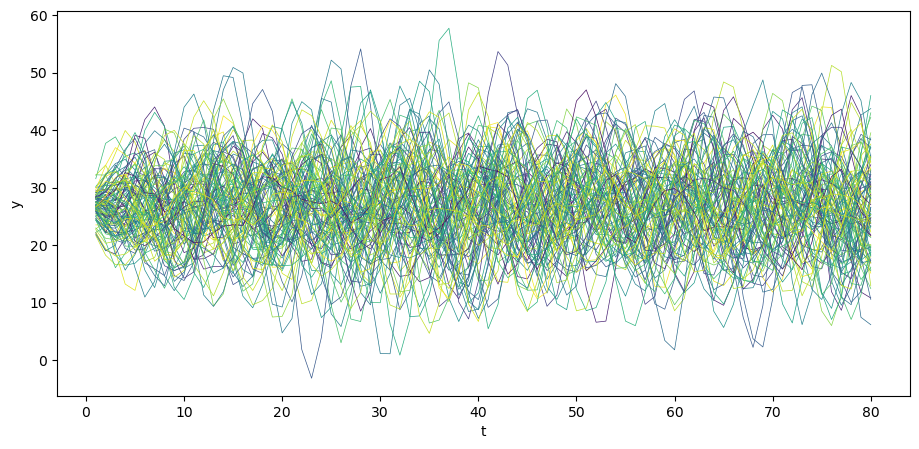

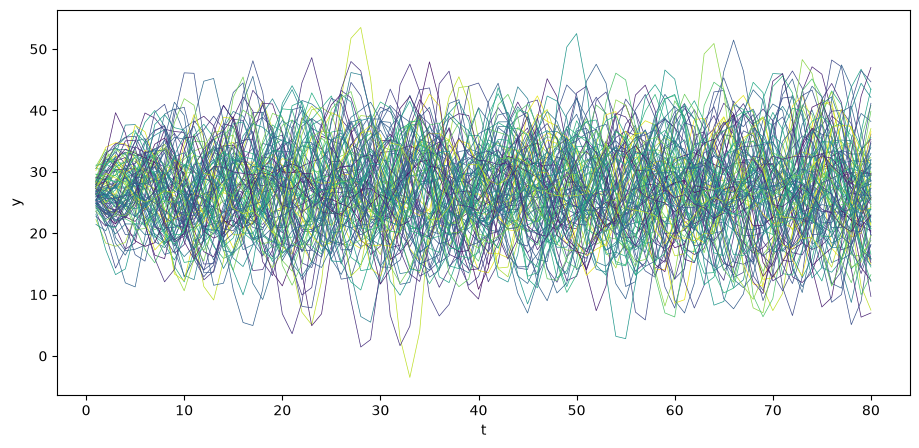

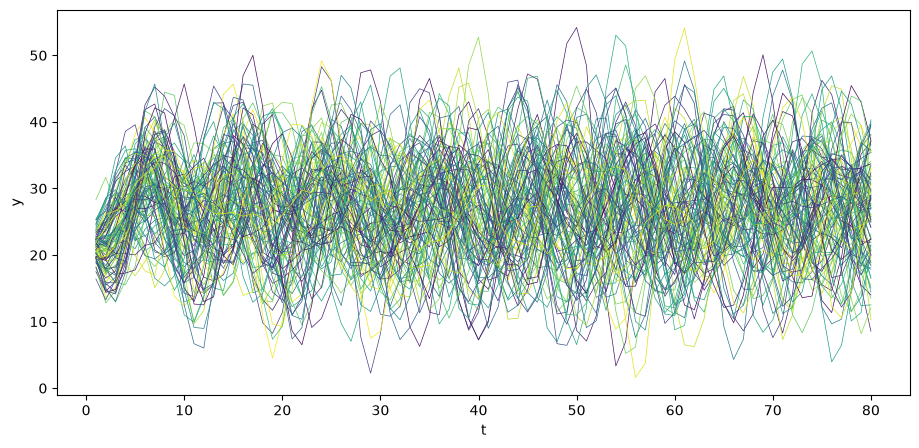

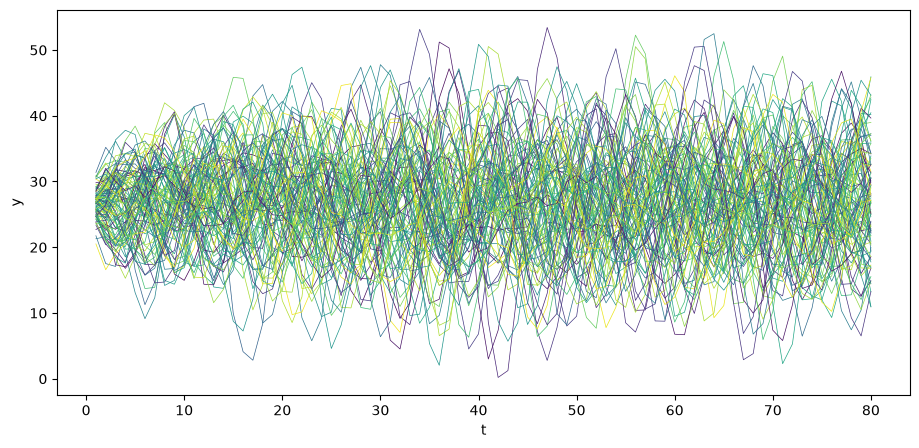

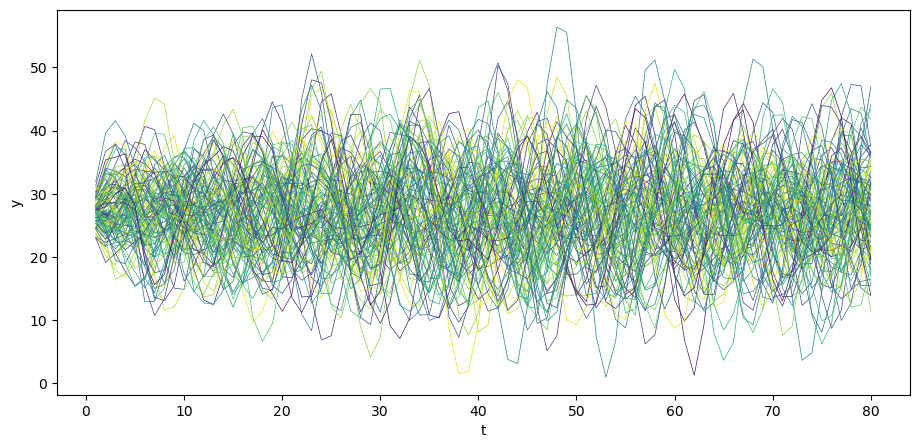

Also consider the case when \(y_{0}\) and \(y_{-1}\) are at steady state.

N = 100

for i in range(N):
    col = cm.viridis(np.random.rand())  # Choose a random color from viridis
    u = np.random.normal(0, σ_u, size=T)
    y_steady = A_inv @ (b_steady + u)
    plt.plot(np.arange(T)+1, y_steady, lw=0.5, color=col)

plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/47863573909f42531c80d8a708f628295a9e902b825dfa5427db1651a593045d.png

35.4. Computing population moments#

We can apply standard formulas for multivariate normal distributions to compute the mean vector and covariance matrix for our time series model

\[ y = A^{-1} (b + u) . \]

You can read about multivariate normal distributions in this lecture Multivariate Normal Distribution.

Let’s write our model as

\[ y = \tilde A (b + u) \]

where \(\tilde A = A^{-1}\).

Because linear combinations of normal random variables are normal, we know that

\[ y \sim {\mathcal N}(\mu_y, \Sigma_y) \]

where

\[ \mu_y = \tilde A b \]

and

\[ \Sigma_y = \tilde A (\sigma_u^2 I_{T \times T} ) \tilde A^T \]

Let’s write a Python class that computes the mean vector \(\mu_y\) and covariance matrix \(\Sigma_y\).

class population_moments:
    """
    Compute population moments μ_y, Σ_y.
    ---------
    Parameters:
    α_0, α_1, α_2, T, y_neg1, y_0
    """
    def __init__(self, α_0, α_1, α_2, T, y_neg1, y_0, σ_u):

        # compute A
        A = np.identity(T)

        for i in range(T):
            if i-1 >= 0:
                A[i, i-1] = -α_1

            if i-2 >= 0:
                A[i, i-2] = -α_2

        # compute b
        b = np.full(T, α_0)
        b[0] = α_0 + α_1 * y_0 + α_2 * y_neg1
        b[1] = α_0 + α_2 * y_0

        # compute A inverse
        A_inv = np.linalg.inv(A)

        self.A, self.b, self.A_inv, self.σ_u, self.T = A, b, A_inv, σ_u, T

    def sample_y(self, n):
        """
        Give a sample of size n of y.
        """
        A_inv, σ_u, b, T = self.A_inv, self.σ_u, self.b, self.T
        us = np.random.normal(0, σ_u, size=[n, T])
        ys = np.vstack([A_inv @ (b + u) for u in us])

        return ys

    def get_moments(self):
        """
        Compute the population moments of y.
        """
        A_inv, σ_u, b = self.A_inv, self.σ_u, self.b

        # compute μ_y
        self.μ_y = A_inv @ b
        self.Σ_y = σ_u**2 * (A_inv @ A_inv.T)

        return self.μ_y, self.Σ_y


series_process = population_moments(
    α_0=10.0, α_1=1.53, α_2=-.9, T=80, y_neg1=28., y_0=24., σ_u=1)

μ_y, Σ_y = series_process.get_moments()
A_inv = series_process.A_inv

It is enlightening to study the \(\mu_y, \Sigma_y\)’s implied by various parameter values.

Among other things, we can use the class to exhibit how statistical stationarity of \(y\) prevails only for very special initial conditions.

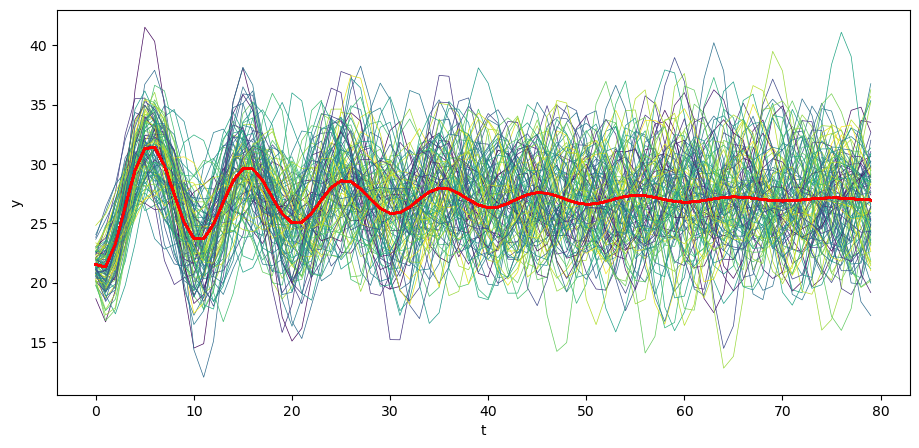

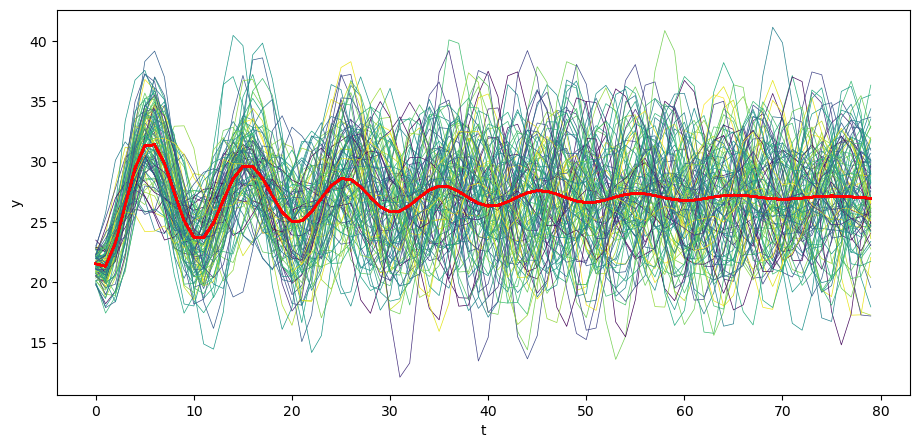

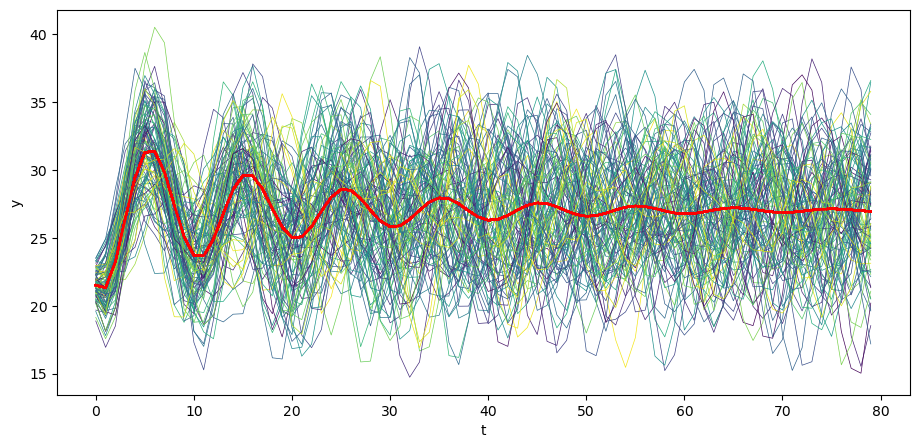

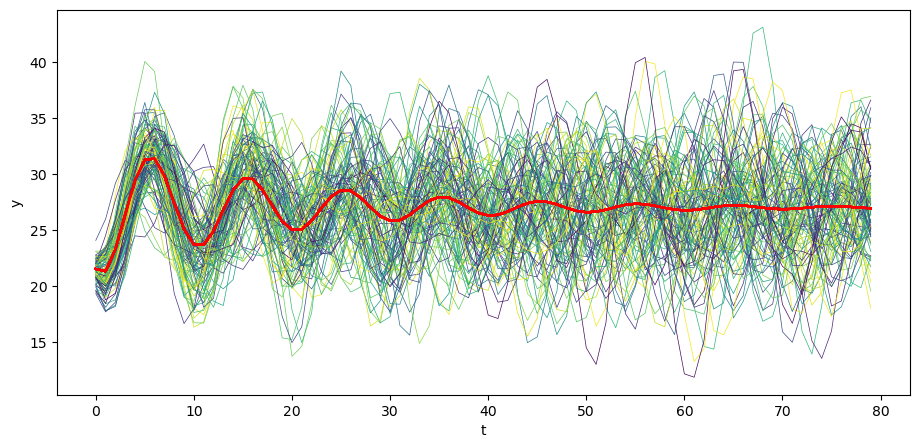

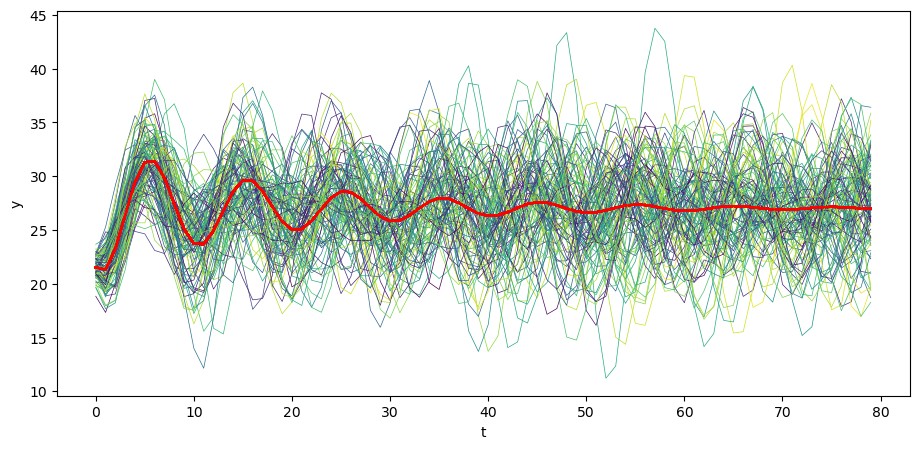

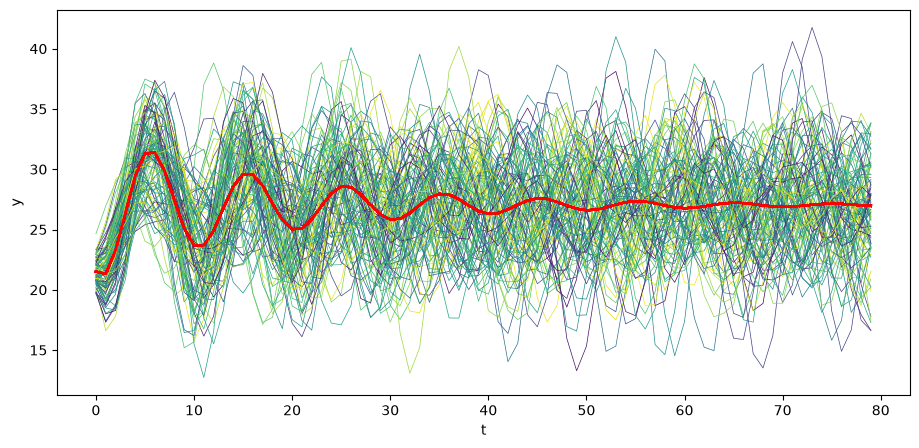

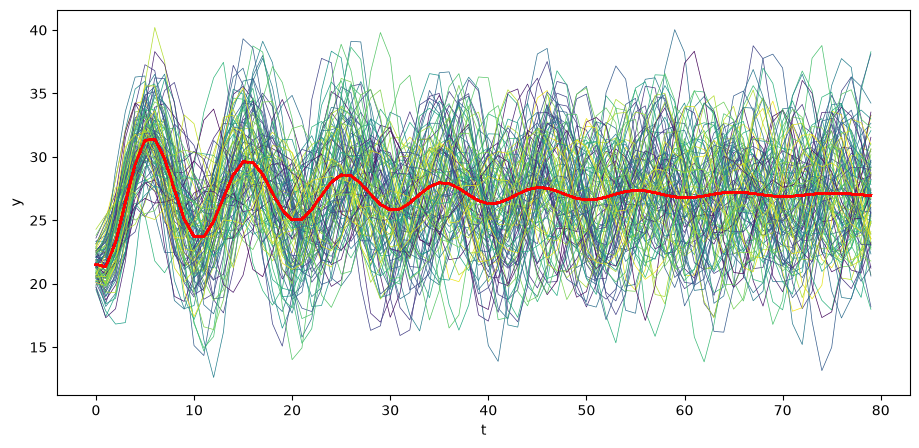

Let’s begin by generating \(N\) time realizations of \(y\) plotting them together with population mean \(\mu_y\) .

# Plot mean
N = 100

for i in range(N):
    col = cm.viridis(np.random.rand())  # Choose a random color from viridis
    ys = series_process.sample_y(N)
    plt.plot(ys[i,:], lw=0.5, color=col)
    plt.plot(μ_y, color='red')

plt.xlabel('t')
plt.ylabel('y')

plt.show()
_images/947199497f7ad4c86538b671a8a76d49b48f8f69eea45febb9fbb5687b5a0e0f.png

Visually, notice how the variance across realizations of \(y_t\) decreases as \(t\) increases.

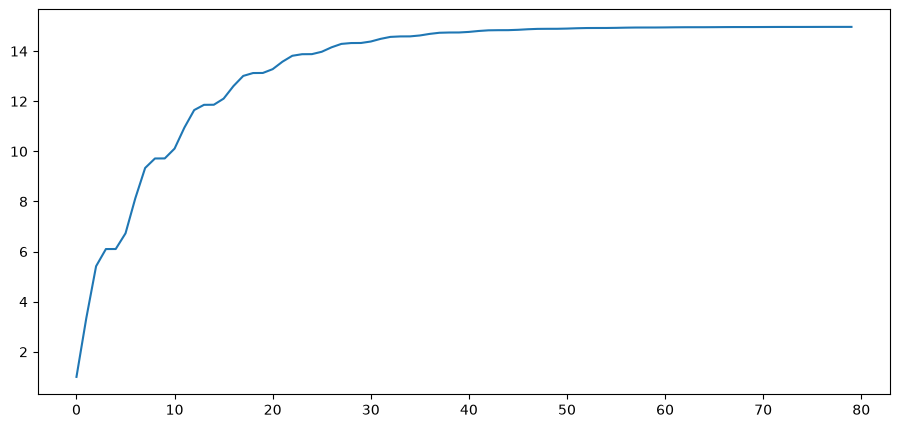

Let’s plot the population variance of \(y_t\) against \(t\).

# Plot variance
plt.plot(Σ_y.diagonal())
plt.show()
_images/eb904d479be3c8282761f147a29d49400d8cefee1f545da6cbc7336c59d2ea81.png

Notice how the population variance increases and asymptotes.

Let’s print out the covariance matrix \(\Sigma_y\) for a time series \(y\).

series_process = population_moments(
    α_0=0, α_1=.8, α_2=0, T=6, y_neg1=0., y_0=0., σ_u=1)

μ_y, Σ_y = series_process.get_moments()
print("μ_y = ", μ_y)
print("Σ_y = ", Σ_y)
μ_y =  [0. 0. 0. 0. 0. 0.]
Σ_y =  [[1.         0.8        0.64       0.512      0.4096     0.32768   ]
 [0.8        1.64       1.312      1.0496     0.83968    0.671744  ]
 [0.64       1.312      2.0496     1.63968    1.311744   1.0493952 ]
 [0.512      1.0496     1.63968    2.311744   1.8493952  1.47951616]
 [0.4096     0.83968    1.311744   1.8493952  2.47951616 1.98361293]
 [0.32768    0.671744   1.0493952  1.47951616 1.98361293 2.58689034]]

Notice that the covariance between \(y_t\) and \(y_{t-1}\) – the elements on the superdiagonal – are not identical.

This is an indication that the time series represented by our \(y\) vector is not stationary.

To make it stationary, we’d have to alter our system so that our initial conditions \((y_0, y_{-1})\) are not fixed numbers but instead a jointly normally distributed random vector with a particular mean and covariance matrix.

We describe how to do that in Linear State Space Models.

But just to set the stage for that analysis, let’s print out the bottom right corner of \(\Sigma_y\).

series_process = population_moments(
    α_0=10.0, α_1=1.53, α_2=-.9, T=80, y_neg1=28., y_0=24., σ_u=1)
μ_y, Σ_y = series_process.get_moments()
print("bottom right corner of Σ_y = \n", Σ_y[72:,72:])
bottom right corner of Σ_y =
 [[ 14.96526785  12.05113208   4.96949102  -3.24269762  -9.43386927
  -11.51539213  -9.12806761  -3.60209053]
 [ 12.05113208  14.96538003  12.05101258   4.96920722  -3.24302428
   -9.43411364 -11.51547202  -9.12796991]
 [  4.96949102  12.05101258  14.96550733  12.0513149    4.96955519
   -3.24276396  -9.43402853 -11.51557609]
 [ -3.24269762   4.96920722  12.0513149   14.9662253   12.0521413
    4.97017342  -3.24256184  -9.43427569]
 [ -9.43386927  -3.24302428   4.96955519  12.0521413   14.96717651
   12.05285289   4.97040607  -3.24284632]
 [-11.51539213  -9.43411364  -3.24276396   4.97017342  12.05285289
   14.96770885  12.05302694   4.97019325]
 [ -9.12806761 -11.51547202  -9.43402853  -3.24256184   4.97040607
   12.05302694  14.96776576  12.05295736]
 [ -3.60209053  -9.12796991 -11.51557609  -9.43427569  -3.24284632
    4.97019325  12.05295736  14.96785084]]

Please notice how the subdiagonal and superdiagonal elements seem to have converged.

This is an indication that our process is asymptotically stationary.

You can read about stationarity of more general linear time series models in this lecture Linear State Space Models.

There is a lot to be learned about the process by staring at the off diagonal elements of \(\Sigma_y\) corresponding to different time periods \(t\), but we resist the temptation to do so here.

35.5. Moving average representation#

Let’s print out \(A^{-1}\) and stare at its structure

  • is it triangular or almost triangular or \(\ldots\) ?

To study the structure of \(A^{-1}\), we shall print just up to \(3\) decimals.

Let’s begin by printing out just the upper left hand corner of \(A^{-1}\).

with np.printoptions(precision=3, suppress=True):
    print(A_inv[0:7,0:7])
[[ 1.     0.    -0.    -0.     0.    -0.    -0.   ]
 [ 1.53   1.    -0.    -0.     0.    -0.    -0.   ]
 [ 1.441  1.53   1.     0.     0.     0.     0.   ]
 [ 0.828  1.441  1.53   1.     0.     0.     0.   ]
 [-0.031  0.828  1.441  1.53   1.    -0.    -0.   ]
 [-0.792 -0.031  0.828  1.441  1.53   1.     0.   ]
 [-1.184 -0.792 -0.031  0.828  1.441  1.53   1.   ]]

Evidently, \(A^{-1}\) is a lower triangular matrix.

Let’s print out the lower right hand corner of \(A^{-1}\) and stare at it.

with np.printoptions(precision=3, suppress=True):
    print(A_inv[72:,72:])
[[ 1.     0.     0.     0.     0.     0.     0.     0.   ]
 [ 1.53   1.    -0.    -0.     0.    -0.    -0.    -0.   ]
 [ 1.441  1.53   1.     0.     0.     0.     0.     0.   ]
 [ 0.828  1.441  1.53   1.     0.     0.     0.     0.   ]
 [-0.031  0.828  1.441  1.53   1.    -0.    -0.    -0.   ]
 [-0.792 -0.031  0.828  1.441  1.53   1.     0.     0.   ]
 [-1.184 -0.792 -0.031  0.828  1.441  1.53   1.     0.   ]
 [-1.099 -1.184 -0.792 -0.031  0.828  1.441  1.53   1.   ]]

Notice how every row ends with the previous row’s pre-diagonal entries.

Since \(A^{-1}\) is lower triangular, each row represents \( y_t\) for a particular \(t\) as the sum of

  • a time-dependent function \(A^{-1} b\) of the initial conditions incorporated in \(b\), and

  • a weighted sum of current and past values of the IID shocks \(\{u_t\}\).

Thus, let \(\tilde{A}=A^{-1}\).

Evidently, for \(t\geq0\),

\[ y_{t+1}=\sum_{i=1}^{t+1}\tilde{A}_{t+1,i}b_{i}+\sum_{i=1}^{t}\tilde{A}_{t+1,i}u_{i}+u_{t+1} \]

This is a moving average representation with time-varying coefficients.

Just as system (35.4) constitutes a moving average representation for \(y\), system (35.3) constitutes an autoregressive representation for \(y\).

35.6. A forward looking model#

Samuelson’s model is backward looking in the sense that we give it initial conditions and let it run.

Let’s now turn to model that is forward looking.

We apply similar linear algebra machinery to study a perfect foresight model widely used as a benchmark in macroeconomics and finance.

As an example, we suppose that \(p_t\) is the price of a stock and that \(y_t\) is its dividend.

We assume that \(y_t\) is determined by second-order difference equation that we analyzed just above, so that

\[ y = A^{-1} \left(b + u\right) \]

Our perfect foresight model of stock prices is

\[ p_{t} = \sum_{j=0}^{T-t} \beta^{j} y_{t+j}, \quad \beta \in (0,1) \]

where \(\beta\) is a discount factor.

The model asserts that the price of the stock at \(t\) equals the discounted present values of the (perfectly foreseen) future dividends.

Form

\[\begin{split} \underset{\equiv p}{\underbrace{\left[\begin{array}{c} p_{1}\\ p_{2}\\ p_{3}\\ \vdots\\ p_{T} \end{array}\right]}}=\underset{\equiv B}{\underbrace{\left[\begin{array}{ccccc} 1 & \beta & \beta^{2} & \cdots & \beta^{T-1}\\ 0 & 1 & \beta & \cdots & \beta^{T-2}\\ 0 & 0 & 1 & \cdots & \beta^{T-3}\\ \vdots & \vdots & \vdots & \vdots & \vdots\\ 0 & 0 & 0 & \cdots & 1 \end{array}\right]}}\left[\begin{array}{c} y_{1}\\ y_{2}\\ y_{3}\\ \vdots\\ y_{T} \end{array}\right] \end{split}\]
β = .96
# construct B
B = np.zeros((T, T))

for i in range(T):
    B[i, i:] = β ** np.arange(0, T-i)
B
array([[1.        , 0.96      , 0.9216    , ..., 0.04314048, 0.04141486,
        0.03975826],
       [0.        , 1.        , 0.96      , ..., 0.044938  , 0.04314048,
        0.04141486],
       [0.        , 0.        , 1.        , ..., 0.04681041, 0.044938  ,
        0.04314048],
       ...,
       [0.        , 0.        , 0.        , ..., 1.        , 0.96      ,
        0.9216    ],
       [0.        , 0.        , 0.        , ..., 0.        , 1.        ,
        0.96      ],
       [0.        , 0.        , 0.        , ..., 0.        , 0.        ,
        1.        ]])
σ_u = 0.
u = np.random.normal(0, σ_u, size=T)
y = A_inv @ (b + u)
y_steady = A_inv @ (b_steady + u)
p = B @ y

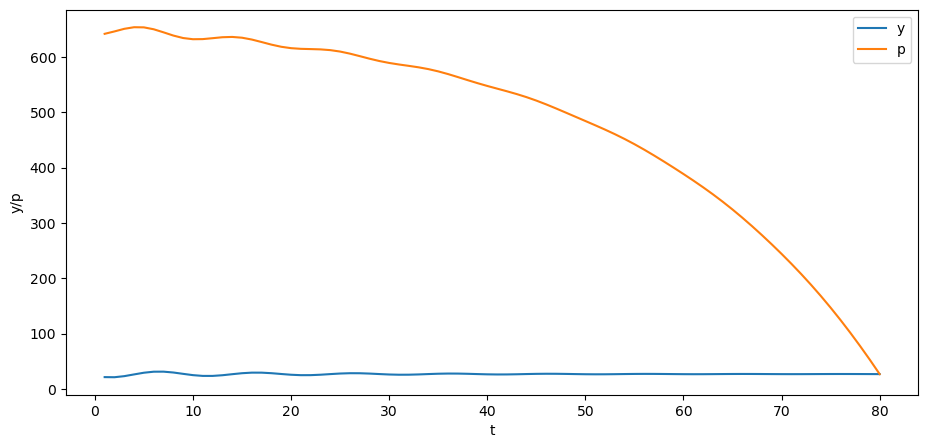

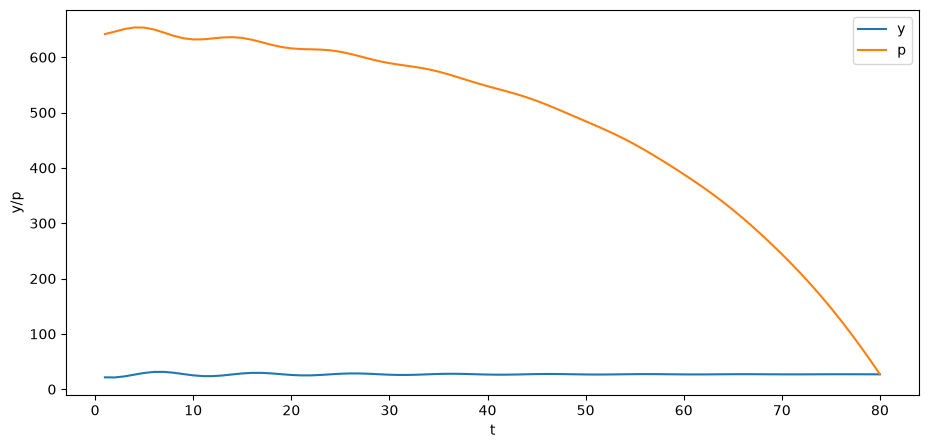

plt.plot(np.arange(0, T)+1, y, label='y')
plt.plot(np.arange(0, T)+1, p, label='p')
plt.xlabel('t')
plt.ylabel('y/p')
plt.legend()

plt.show()
_images/78fbdee51f3dc23d89ff50c385396ab28f0434b3e1dacc202f485414d0a9a168.png

Can you explain why the trend of the price is downward over time?

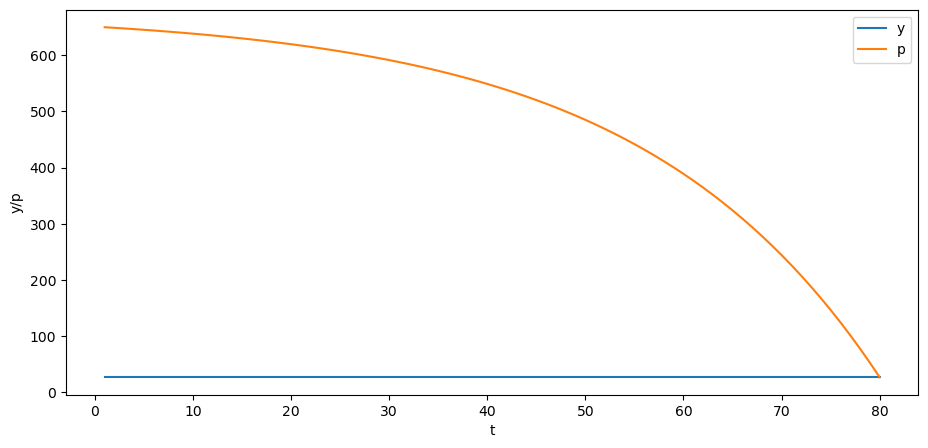

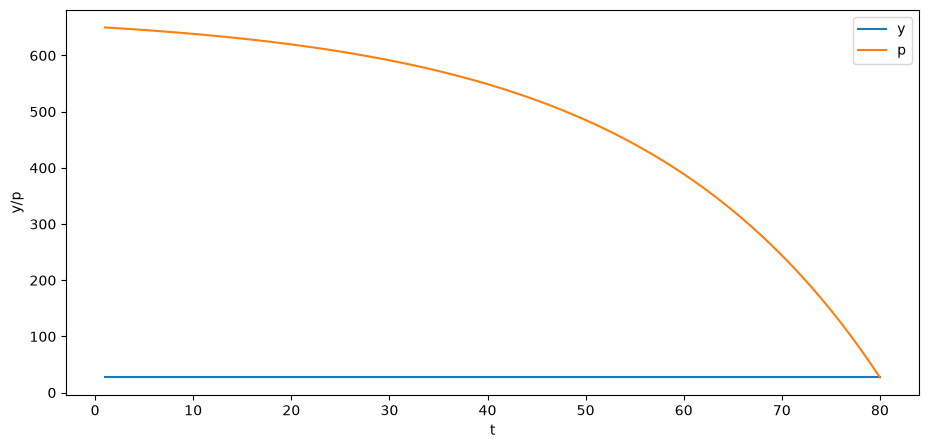

Also consider the case when \(y_{0}\) and \(y_{-1}\) are at the steady state.

p_steady = B @ y_steady

plt.plot(np.arange(0, T)+1, y_steady, label='y')
plt.plot(np.arange(0, T)+1, p_steady, label='p')
plt.xlabel('t')
plt.ylabel('y/p')
plt.legend()

plt.show()
_images/ff56d4085829131467129a99909259f5f1896539a511508782f2328d70f1291e.png
